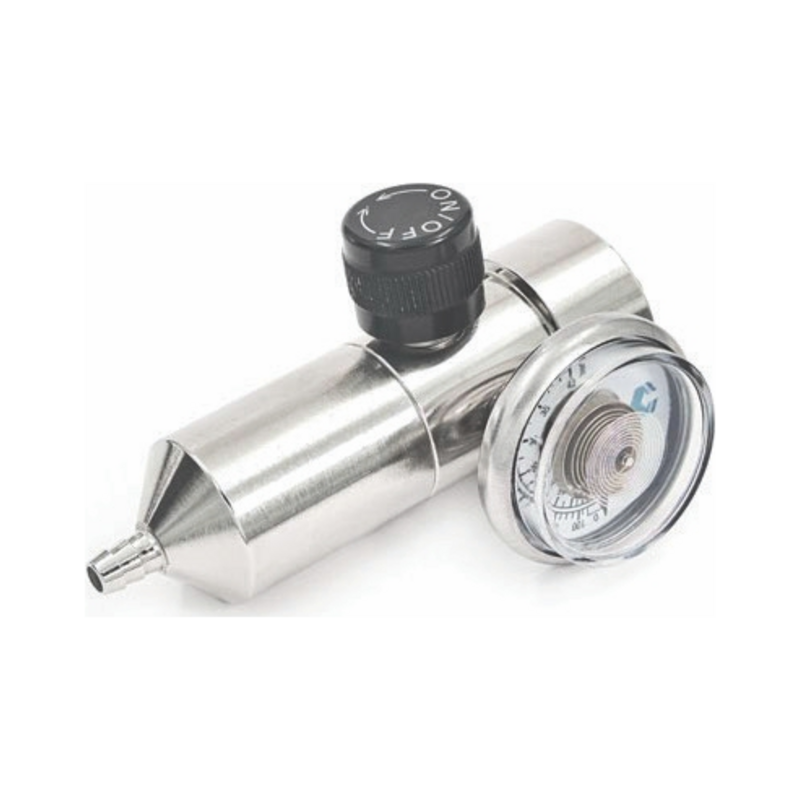

Fixed Flow Calibration Gas Regulator — CGA600, Brass Nickel-Plated
$92.00
Sale price
$92.00
Regular price
Single-stage fixed flow regulator that delivers a preset, constant flow rate for calibration gases and handheld gas detectors. Designed for CGA600 cylinders (17 L and 34 L). Flow rate is factory-preset to your requirement.
Specifications
| Type | Fixed flow, single-stage (preset) |
| Body / Cap | Brass, nickel-plated |
| Piston | Brass |
| Seats & Seals | PTFE, Viton & Buna-N |
| Inlet connection | CGA600 (1"×20 UNF) |
| Outlet connection | 3/16" (4.8 mm) hose barb |
| Max inlet pressure | 600 psig / 40 bar |
| Outlet pressure | 30 psig / 2.1 bar |
| Preset flow range | 0.1–8.0 LPM (specify at order) |
| Gauge | 0–600 psig / 40 bar |
| Gas compatibility | Non-reactive gases |
| Weight | 0.330 kg |
Applications: Calibration gas delivery and bump testing for handheld gas detectors.
